Being a fan of orchestral symphonies, it’s easy to see that it takes great care and skill to choreograph and direct one hundred musicians on brass, string, percussion and woodwind instruments. These master conductors give numerous cues and signals as they help to transform potential cacophonies into beautiful melodious music. As Gustavo Duhamel is to the Los Angeles Philharmonic and Andris Nelsons is to the Boston Symphony Orchestra, so is the pituitary gland to the endocrine system.
This masterful gland stands center stage at the base of the brain in the middle cranial fossa as it takes on the immense responsibility of regulating the activity of the six other major endocrine glands that release hormones integral for growth and development. This article will cover the gross anatomy, vascular supply, and some associated pathologies of the pituitary gland.
- Gross anatomy
- Borders and structural relations
- Vascular supply
- Neuroendocrine pathway
- Clinical notes
- Related diagrams and images

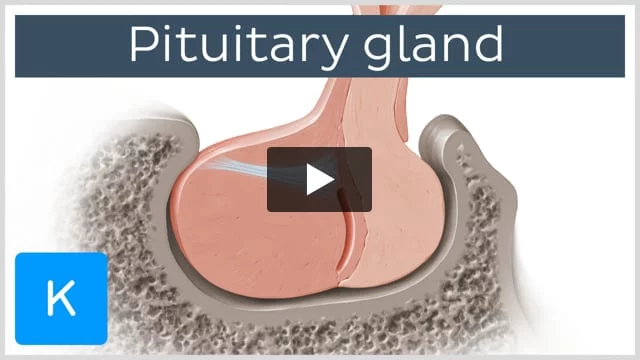

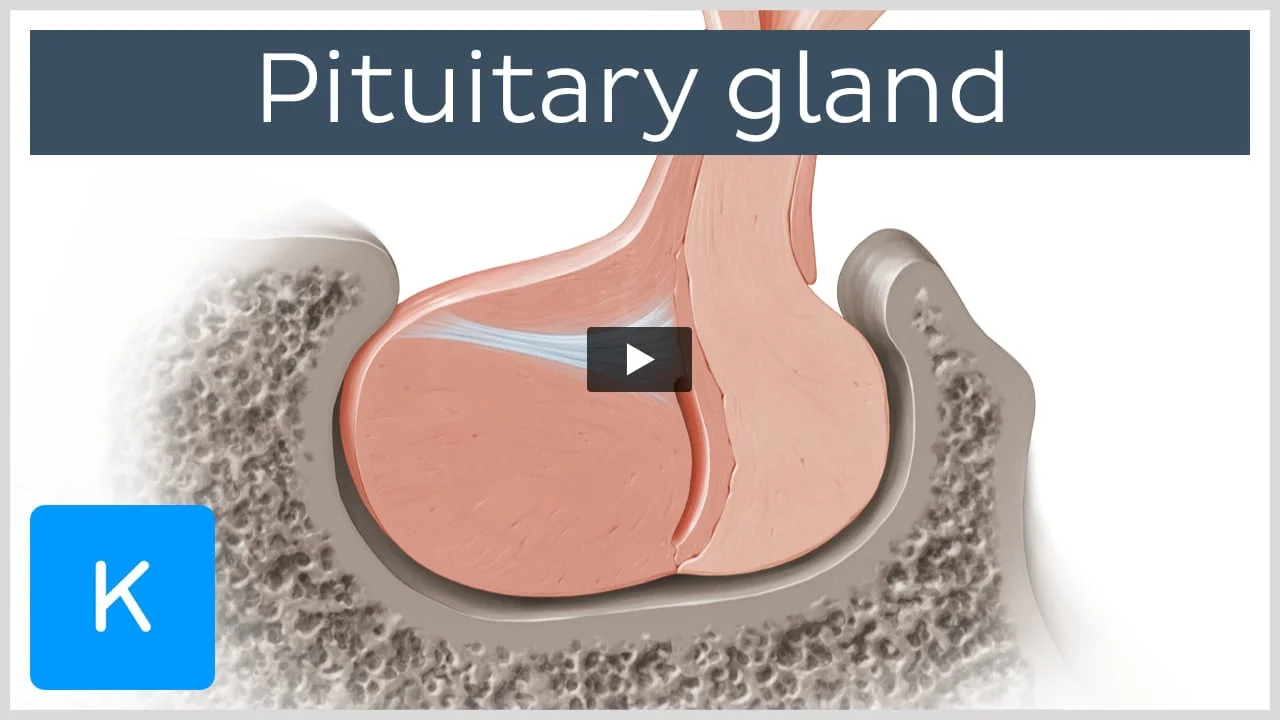

The hypophysis cerebri is a pea sized bulb-like half gram structure that extends from hypothalamus to rest in the hypophyseal fossa of the sella turcica in the superior part of the sphenoid bone. While it is not considered as being a part of the brain, the gland maintains connection to the brain by way of its infundibulum (pituitary stalk) that passes through an encasing fold of dura mater known as the diaphragma sellae.
The pituitary gland has two embryologic origins and as a result, it has functionally and histologically distinct parts. Anteriorly, a somatoectodermal protrusion from the rostral part of the stomodeum – also known as the hypophyseal pouch of Rathke – forms the glandular component of the pituitary gland. This segment, known as the adenohypophysis, is comprised of:
- Pars distalis (anterior) – the larger, distal, highly vascular part of the gland; also known as the anterior pituitary gland,
- Pars intermedia – small intermediate portion between the anterior and posterior portions of the pituitary gland; remnant of the hypophyseal pouch of Rathke,
- Pars tuberalis – superior circumferential extension of the pars distalis that encircles the infundibular stalk of the posterior pituitary gland.
Simultaneously, as the adenohypophysis projects superiorly, a neuroectodermal outgrowth projects inferiorly from the floor of the third ventricle. The resulting structure is the neurohypophysis.
This portion of the pituitary gland is made up of:
- Pars nervosa (posterior) – collection of approximate 100,000 unmyelinated neurons; houses supportive pituicytes and hypothalamic hormones,
- Infundibular stalk – connects the posterior (and anterior) pituitary gland to the hypothalamus by way of the median eminence.
Borders and structural relations
The bony borders of the pituitary gland are:
- Anteriorly: tuberculum sellae, jugum sphenoidale, and the prechiasmatic groove
- Posteriorly: dorsum sellae and the posterior clinoid processes (posterolaterally).
- Inferiorly: hypophyseal fossa of the sella turcica and the sphenoid air sinus
There are other important structures surrounding hypophysis cerebri that should be noted.
Immediately superior to the gland (outside the diaphragma sellae) the anterior and posterior intercavernous sinuses form an anastomosis at the base of the infundibulum.
Anteriorly, the left and right optic nerves branch from the optic chiasm in the prechiasmatic groove and pass through the optic canal with the ophthalmic artery. Anterolaterally, the cavernous parts of the internal carotid artery passes by in the cavernous sinus. Also located in the cavernous sinus (arranged in a craniocaudal manner) are the oculomotor (CNIII), trochlear (CNIV), abducent (CNVI), ophthalmic (CNV1) and maxillary (CNV2) nerves.
As a result of its post developmental location, visualization of the pituitary gland of an intact specimen is best done from an inferior angle. At this angle, the hypophysis cerebri will be located posterior to optic nerves (CNII) and their chiasm, and anterior to the tuber cinereum and mammillary bodies. The cerebral peduncle and the pons of the brain stem can also be observed further posterior to the gland. Posterolaterally, on either side, uncus of the parahippocampal gyri can be appreciated.
The cavernous and supraclinoid parts of the internal carotid artery provide a solitary inferior hypophyseal artery and several superior hypophyseal arteries, respectively. The former provides oxygenated blood to the pars nervosa and the lower aspect of the infundibulum. On the other hand, the latter vessels supply the upper region of the infundibulum and the median eminence. They indirectly provide blood supply to the pars distalis by way of primary and secondary capillary beds. This vascular connection of the adenohypophysis, neurohypophysis and the hypothalamus is known as the hypophyseal portal system.
Venous drainage of the neurohypophysis is achieved by the short and long portal veins that join the pars distalis capillary bed. Additionally, the inferior hypophyseal vein drains the neurohypophysis directly to the cavernous sinus.
The infundibular stalk provides a direct pathway for neuronal communication between the hypothalamus and the pars nervosa. There are no hormone secreting cells in the neurohypophysis. Therefore, the hormones found in the pars nervosa are supraoptically and paraventricularly derived from the nuclei of the hypothalamus. They are then transported to the pars nervosa via the hypothalamo-hypophyseal tract (infundibular stalk). Subsequent to processing and storage, the hormones are released directly on the pars nervosa capillary beds and enter the lumen of the vessels via their fenestra when needed.
Conversely, there are no direct neuronal communications between the brain and the pars distalis. Since the pars distalis is of somatoectodermal origin, it has a vast vascular network that allows direct hormonal regulation of its actions by the hypothalamus. The numerous fenestrated superior hypophyseal arteries receive hormones from terminal hypothalamic neurons and, by way of primary and secondary capillary plexuses, deliver these hormones to the pars distalis.
Pathophysiology of the pituitary gland may present as an overactive (hyperpituitarism) or an inactive (hypopituitarism) gland.
- Hyperpituitarism may arise from neoplastic insults to the anterior part of the gland. Consequently, there is an overproduction of the trophic hormones that elaborates the respective systems the induced hormones affects. For example, if the pituitary adenoma produces prolactin, the cells are called lactotrophs and the adenoma is classified as a lactotroph adenoma; which causes amenorrhea (in women), galactorrhea, and infertility.
- In cases of hypopituitarism, iatrogenic or ischaemic insults can initiate a destructive cascade that reduces the functionality of the pituitary gland. A persistent Rathke’s pouch can develop into a cyst between the adenohypophysis and the neurohypophysis. The pouch may become oedematous after collecting protein-rich fluids, and subsequently obstruct the function of the gland.
It should also be noted that since the gland is limited inferiorly by the sella turcica of the sphenoid bone, it is most likely that neoplasias of the pituitary gland will grow rostrally. Consequently, the mass may compress the optic chiasm, resulting in visual impairment.
